VDSL2 Modem / Router Series
|
|
|
BiPAC 8600SM
|
BiPAC 8600SM
Single Ethernet Port VDSL2 Modem
Billion's BiPAC 8600SM - delivering truly cost-effective, high-speed to enhance
productivity. VDSL, Very-high-bit-rate Digital Subscriber Line, is the next generation of DSL
technology. With accelerated data rates, VDSL delivers high transfer speeds for bandwidthconsuming
applications, like voice, video-on-demand, and IPTV services. Billion's BiPAC
8600SM has integrated VDSL2 technology to provide amazing bandwidth for users who want
to fulfill their vision of the digital home or improved office productivity. Due to the
characteristics of faster rates and shorter distances offered by VDSL2, it is an ideal and costeffective
solution to use fiber optic lines as the backbone and a VDSL line as the last mile into
the home or office. Then, ISPs and Telcos (operators and carriers) can deliver more diversified
multimedia services to end customers.
|
|
| |
|
|
|
| |
|
 Key Features |
-
Very high speed VDSL2 transmission
-
Supports 3/4/5 bands
- Asymmetric mode up to 100/45Mbps
-
Suitable for MTU/MDU environments
- Easy installation
-
Ideal for residential users
|
Benefits |
Very High Speed Data Transmission
BiPAC 8600SM complies with the VDSL2 standard. It offers greater bandwidth and a
higher downstream rate, up to 100Mbps, for gradually increasing bandwidth-consuming
applications. Home users can enjoy smooth media-rich entertainment; SOHO or small
business users can enjoy high-quality symmetric and asymmetric Internet access.
Bundle Over Existing Copper Wires
VDSL operates over copper wires so that telecom operators can provide bundled
services to end-users similar to what cable operators offer. With outstanding
throughput, the BiPAC 8600SM can complement a fiber network to offer the best
solution for delivering IPTV or home entertainment services.
Easy Installation
The BiPAC 8600SM is easy to install and reduces installation effort and expense.
Simply connect the hardware interface without needing any software configuration, it
connects users to the Internet because it is fully compliant with all kinds of network
protocols.
|
|
|
|
Application Diagram |

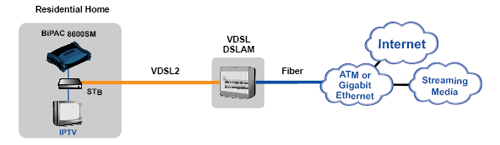

 Deployment scenario for VDSL using FTTN (BiPAC 8600SM -
Single Ethernet Port VDSL2 Modem/Router
)

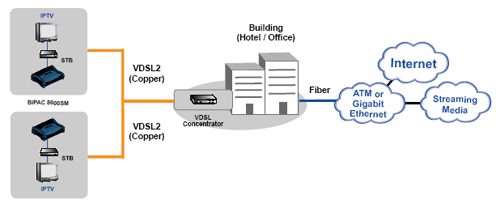

Deployment scenario for VDSL using FTTB (BiPAC 8600SM -
Single Ethernet Port VDSL2 Modem/Router)
|
|
|
|
Features & Specifications |
VDSL Compliance
• Compliant with VDSL Standard
- ITU-T G.993.1
• Compliant with VDSL2 Standard
- ITU-T G.993.2
• ANSI T1.424
• ETSI TS 101 270
• China MII
• Modulation Method: DMT
• Ethernet over VDSL
• G.993.2 VDSL2 (Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a support)
• Band Plan 997 and 998 support
• Supports 3/4/5 bands
• Supports up to 100Mbps downstream and 45Mbps upstream
Network Protocols and Features
• Transparent bridging
• Ethernet over VDSL (EoVDSL) Bridging
• IEEE 802.3/3u/3x
• Flow control in full duplex mode
• Back pressure in half duplex mode
Operating Environment
• Operating temperature: 0 ~ 40ºC
• Storage temperature: -20 ~ 70ºC
• Humidity: 20 ~ 95% non-condensing
Management
• Firmware upgrade through special utility (on demand)
Hardware Specification
Physical Interface
• DSL: one RJ-11 VDSL port
• Ethernet: one RJ-45 10/100 Ethernet port
• Reflash button
• Power jack
• Power switch
Physical Specification
• Dimensions: 7.09" x 4.72" x 1.57" (180 mm x 120 mm x 40 mm)
Power Requirement
• Input: 12V DC, 1A
|
|
|
|
|
|
|
| |
|
|
|
|
|
