ADSL Compliance
• Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
• Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
• Compliant with ADSL2+ Standard
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)
Network Protocols and Features
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS relay and IGMP proxy
• IGMP snooping for video service
• Management based-on IP protocol, port number and address
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Remote access control for web base access
• Packet Filtering - port, source IP address, destination IP address, MAC address
• URL Filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization management based-on IP protocol, port number and address
ATM and PPP Protocols
• ATM Adaptation Layer Type 5 (AAL5)
• Classical IP over ATM (IPoA) (RFC 2225 / RFC 1577)
• IP over Ethernet (RFC1483/RFC2684)
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• MAC Encapsulated Routing (RFC 1483 MER)
• OAM F4 / F5
IPTV Applications*2
• Virtual LAN (VLAN)
• Quality of Service (QoS)
• IGMP Snooping & IGMP Proxy
• VLAN MUX support
Wireless LAN
• Compliant with IEEE 802.11n, 802.11g and 802.11b standards
• 2.4 GHz - 2.484 GHz frequency range
• Up to 300Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
• 802.1x radius supported
• Web-based GUI and hardware push button for WLAN on/off switch control
Management
• Web-based GUI for remote and local management
• Firmware upgrades and configuration data upload and download via web-based GUI
• Embedded Telnet server for remote and local management
• Available Syslog
• Supports DHCP server / client / relay
• TR-069*3 supports remote management
• SNMP v1/v2 supports remote and local management
Hardware Specifications

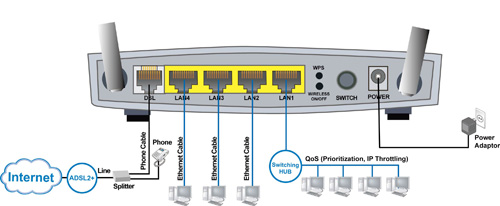

Physical Interface
• WLAN: 2 x 2dbi fixed antennas
• DSL: ADSL port
• Ethernet: 4-port 10 / 100Mbps auto-crossover (MDI / MDI-X) Switch
• Factory default reset button
• WPS push button
• WLAN On/Off push button
• Power jack
• Power switch
Physical Specifications
• Dimensions : 5.91" x 4.33" x 0.87" (150mm x 110mm x 22mm)
Power Requirements
• Input: 12V DC, 1A
Operating Environment
• Operating temperature: 0 - 40℃
• Storage temperature: -20 - 70℃
• Humidity: 20 - 95% non-condensing
Models & Supported Standards
• BiPAC 7700N A: Annex A and Annex M (Annex A and Annex M: ADSL over POTS)
Notes:
1. The router may require firmware modification for certain ADSL2 / 2+ / Annex M DSLAMs.
2. IPTV application may require subscribing to IPTV services from a Telco / ISP.
3. Only upon request for Telco / ISP tender projects.
4. Specifications in this datasheet are subject to change without prior notice.
|
