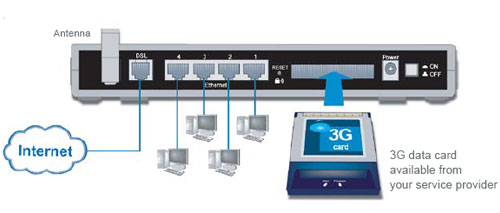

Application Diagram BiPAC 7300GX

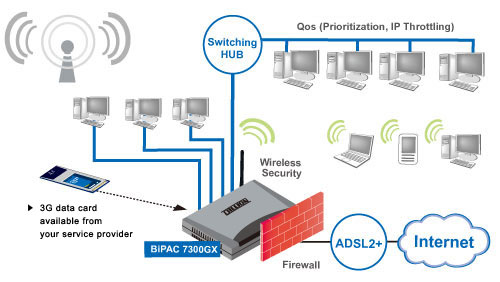

Network Diagram

Applications over 3G/ADSL networks

At the desk
Enjoy all the benefits of high-speed ADSL connection right at your desk with the BiPAC 7300GX, offering a secure computing experience, with an integrated SPI firewall, DoS prevention and other robust security features.

Anytime connection
The BiPAC 7300GX's auto-failover feature ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G network in the event that the landline fails. The BiPAC 7300GX will then automatically return to the ADSL connection when it's restored reducing connection costs. These features are perfect for office situations where a constant connection is paramount.

In a meeting
The BiPAC 7300GX's innovative browser-based configuration allows you to quickly and easily set up a WLAN, so when you're at a meeting or training, your guests or participants can quickly and securely access the Internet via a 3G network to retrieve emails, share meeting minutes or training materials with their colleagues.

In a car
The included 12V car-charger allows you to connect to the Internet whilst in your car - so you can keep the children entertained on a long road trip, or refer to online mapping sites when you need to be somewhere you're not familiar with.

On public transport
By installing the BiPAC 7300GX, public transport operators can update passengers with real-time weather and event information, updated regularly via a 3G Internet connection, or offer business travelers Internet access that can be charged for to create greater income potential.

At an event
When you're chilling out at a party or concert, the light-weight, portable BiPAC 7300GX frees you to instantly share your pictures or video clips of the event with friends and family -- so those close to you can share your enjoyment.

Communication Flexibility via 3G/HSDPA
The BiPAC 7300GX router allows you to insert a 3G/HSDPA PC card into its built-in PC Card slot, enabling you to use a 3G/HSDPA, UMTS, EDGE, GPRS, or GSM Internet connection that makes a downstream rate up to 14.4Mbps possible. With the increasing popularity of the 3G Mobile Broadband, communication via the BiPAC 7300GX is becoming more convenient and widely available - allowing you to watch movies, download music on the road, or access e-mail no matter where you are. You can even share your Internet connection with others, no matter if you're in a meeting, or speeding across the country on a train.

Always Online
The BiPAC 7300GX complies with worldwide ADSL standards, supporting download rates up to 12/24Mbps with ADSL2/2+, 8Mbps with ADSL and an upload rate up to 1Mbps. Using this technology you'll be able to enjoy high-speed ADSL and broadband multimedia applications such as interactive gaming, video streaming and real-time audio. Furthermore, the Annex M standard integrated into the BiPAC 7300GX supports ADSL2/2+ for higher upload speeds by doubling the upload data rate. Planned support for auto-failover means that you'll be assured of a constant Internet connection – in case your ADSL line fails, the BiPAC 7300GX will connect via 3G Broadband to deliver uninterrupted connectivity.

Double-layer Protection
An integrated 802.11g Wireless Access Point offers quick yet easy access with data encryption for added security. Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) support ensures the high-level data protection and WLAN access control. In addition, rich firewall security features such as SPI, DoS attack prevention and URL content filtering are integrated to provide unparalleled protection for Internet access. Enjoy the benefits of added security by simply pressing the Wi-Fi Protected Setup button to quickly and easily set up secure wireless communication.

ADSL Compliance
• Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
• Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
(Available for BiPAC 7300GXA only)
• Compliant with ADSL2+ Standard
- G.dmt.bisplus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)

Network Protocols and Features
• NAT, static routing and RIP-1/2
• Universal Plug-and-Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ

Firewall & Virtual Private Network (VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including IP spoofing, land attack,
Smurf attack, ping-of-death, TCP SYN flooding, etc.
• Packet Filtering - port, source IP address, destination IP
address, MAC address
• URL Content Filtering - string or domain name
• Password protection for system management
• VPN pass-through

Wireless 802.11g
• Compliant with IEEE 802.11g and 802.11b standards
• 2.4GHz - 2.484GHz frequency range
• Up to 54Mbps wireless operation rate
• 64-/128-bit WEP supported for encryption
• Wireless Security with WPA-PSK/WPA2-PSK support
• Wireless Distribution System (WDS) repeater function
supported
• Wi-Fi Protected Setup

Operating Environment
• Operating temperature: 0 - 40°C
• Storage temperature: -20 - 70°C
• Humidity: 20 - 95% non-condensing

ATM and PPP Protocols
• ATM Adaptation Layer Type 5 (AAL5)
• Multiple protocols over AAL5 (RFC 2684, formerly RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)

Management
• Quick Installation Wizard and Auto ADSL settings
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and
download via web-based GUI
• Embedded Telnet server for remote and local management
• Available Syslog monitoring
• Supports DHCP server/client/relay

Quality of Service Control
• Supports DiffServ approach
• Traffic prioritization and bandwidth management based-on IP protocol, port number and address

Hardware Specifications
Physical Interface
• DSL: ADSL Port
• Ethernet: 4-port 10/100Mbps auto MDI/MDI-X Switch
• WLAN: one 2 dBi detachable antenna
• 3G/HSDPA PC Card Slot: for a mobile broadband data card
• WPS button: for WPS Push Button Configuration
• Factory default reset button
• Power jack
• Power switch
Physical Specifications
• Dimensions: 8.27" x 5.83" x 1.42"
(210mm x 148mm x 36mm)
Power Requirements
• Input:12V DC, 1A

Models & Standards Supported
• BiPAC 7300GXA: Annex A and Annex M
• BiPAC 7300GXU: U-R2 and Annex B
• Annex A and Annex M: ADSL over POTS
• Annex B and Annex U-R2: ADSL over ISDN
