Wireless ADSL2+ Router Series

BiPAC 5200N

BiPAC 5200N
Draft 802.11n ADSL2+
Firewall Router

Experience the ultimate in wireless speed and coverage; share your networking anywhere with no more dead zones!

The BiPAC 5200N is an economic ADSL2+ Router pack deploying the latest draft 802.11n technology. It's designed for home and SOHO users who seek extreme mobility, high speed wireless connection and better wireless coverage while maintaining high-level security for their Internet connection. With an integrated draft 802.11n Wireless Access Point, the router enables you to surf the Internet from anywhere at home or in the office, delivering fast wireless speeds of up to 300Mbps. The 3 built-in antennas enable effectively searching for wireless signals, and automatically adjust to establish an optimal connection after obstacles have been detected. The SOHO Firewall is integrated, providing protection against hack attacks and the Quality of Service prioritizes queues for smooth traffic. With the BiPAC 5200N you can share your high-speed Internet connection with your family or colleagues at work from anywhere with no more dead zones to run applications such as music download, online gaming, video streaming, and file sharing!

Key Features & Benefits

Features & Specifications

Application Diagram

Key Features

Compliant with draft 802.11n standards
Supports draft 802.11n Wireless Access Point with WPA-PSK/WPA2-PSK
Delivers high-speed wireless connection, with up to 300Mbps data rate
Expanded wireless coverage of up to 3 times the range of standard 802.11g products
WPS (Wi-Fi Protected Setup) for easy setup (* future release)
Auto channel select
High speed Internet access with ADSL2/2+; backward compatible with ADSL
Integrated 4-port ethernet switch
SOHO firewall security with DoS prevention and packet filtering
Quality of Service control
Universal Plug and Play (UPnP) compliant
Dynamic Domain Name System (DDNS)
Supports VPN pass-through
Easy network management
Ideal for home & SOHO users

Benefits

Express Internet Access
This router complies with worldwide ADSL standards. It supports downstream rates of up to 12/24 Mbps with ADSL2/2+, 8 Mbps with ADSL, and upstream rates of up to 1 Mbps. With this technology, users enjoy not only high-speed ADSL service but broadband multimedia applications such as interactive gaming, video streaming and real-time audio run faster and more easily than ever. In particular, by doubling the upstream data rate, the Annex M standard included in the BiPAC 5200NA model supports the latest ADSL2/2+ standard for higher upload speeds.

Optimal Wireless Speeds and Coverage

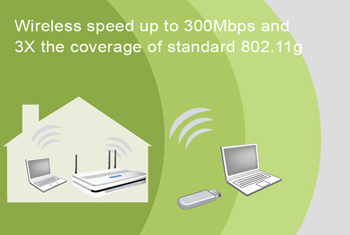

With an integrated draft 802.11n Wireless Access Point, the router delivers up to 6 times the speed and 3 times the wireless coverage of a standard 802.11b/g network device. It supports a data rate of up to 300Mbps, and is also compatible with 802.11b/g equipment. The Wireless Protected Access (WPA-PSK / WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router further supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button.

Firewall Security and Smooth Traffic
Along with the built-in NAT natural firewall feature, the router's advanced anti hacker pattern-filtering protection feature automatically detects and blocks Denial of Service (DoS) attacks. In addition to the NAT technology, the BiPAC 5200N supports Packet Filtering for high-level security control. Quality of Service control prioritizes the traffic and allows users to enjoy smooth traffic while running applications such as like P2P or multimedia through the Internet.

Easy Network Management
The web-based user interface makes it extremely easy for users to install and manage the BiPAC 5200N. The router supports both DHCP client and server, enabling system administrators to easily fit this router into existing network environments and manage the IP assignment without having to reconfigure other stations. Future firmware upgrades can be downloaded using a user-friendly Web-based Interface.

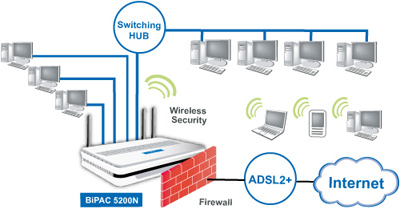

Application Diagram

BiPAC 5200N - Draft 802.11n ADSL2+ Firewall Router

Features & Specifications

ADSL Compliance
• Compliant with ADSL Standard
   - Full-rate ANSI T1.413 Issue 2
   - G.dmt (ITU G.992.1)
   - G.lite (ITU G.992.2)
   - G.hs (ITU G.994.1)
   - ADSL over ISDN/U-R2
• Compliant with ADSL2 Standard
   - G.dmt.bis (ITU G.992.3)
   - ADSL2 Annex M (ITU G.992.3 Annex M)(available for BiPAC 5200NA model only)
• Compliant with ADSL2+ Standard
   - G.dmt.bis plus (ITU G.992.5)
   - ADSL2+ Annex M (ITU G.992.5 Annex M)(available for BiPAC 5200NA model only)

Network Protocols and Features
• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia applications
• Multi-to-multi NAT
• Transparent Bridging
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS relay and IGMP proxy

Firewall & Virtual Private Network (VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Anti probe function
• Packet filtering
• URL Filtering
• Password protection for system management
• VPN pass-through

Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization based-on IP protocol,port number and address

Operating Environment
• Operating temperature: 0 - 40ºC
• Storage temperature: -20 - 70ºC
• Humidity: 20 - 95% non-condensing

Wireless LAN
• Compliant with IEEE 802.11n, 802.11g and 802.11b standards
• 2.4 GHz – 2.484 GHz frequency range
• Auto channel select
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup (* future release)
• 64/128 bits WEP supported for encryption
• Wireless Security with WPA-PSK/WPA2-PSK support
• WDS repeater function support (* future release)

ATM and PPP Protocols
• ATM Adaptation Layer Type 5 (AAL5)
• Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• OAM F4/F5
• ATM QoS: UBR, CBR, VBR-rt, VBR-nrt

Management
• Web-based configuration
• Firmware upgrades and configuration data upload/download via web-based interface
• SNMP v1/v2 MIB supported
• Supports DHCP server/client/relay

Hardware Specifications
  Physical Interface
   • WLAN: 3 external antennas
   • DSL: ADSL port
   • Ethernet: 4-port 10/100M auto-crossover (MDI/MDI-X) switch
   • Factory default reset button
   • WPS button
   • Power jack
  Physical Specifications
   • Dimensions: 7.28" x 4.86" x 1.42"(185mm x 123.5mm x 36mm)
  Power Requirements
   • Input: 12V DC, 1A

Models & Supported Standards
• BiPAC 5200NA: Supports Annex A and Annex M
• BiPAC 5200NU: Supports U-R2 and Annex B
• Annex A and Annex M: ADSL over POTS
• Annex B and U-R2: ADSL over ISDN
